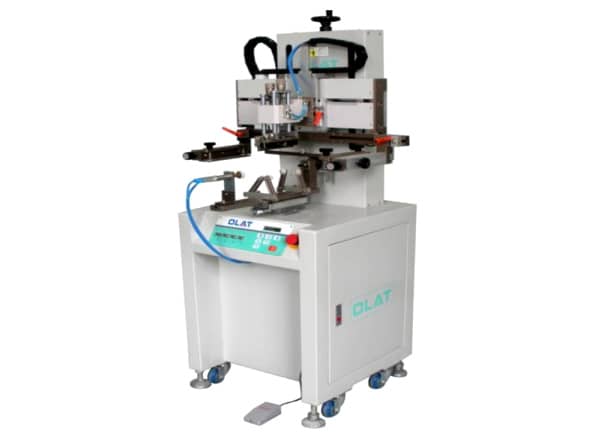

OS-300FA Round Surface Screen Printing Machines

OS-300FA Round Surface Screen Printing Machines

Specification

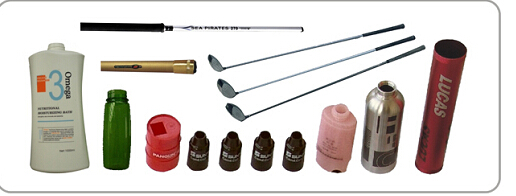

 Piece Shape：                                   Cylindrical/oval
Max Printing Diameter：                       Φ18-80mm
Max Screen Frame Size：                  350*500mm
Max Printing Size：                                   200*250mm
Max Speed：                                            1200 pc/hour
Voltage/power：                                       220V/50HZ/50W
Air Pressure  ：                                           5-6bar
Machine Weight：                                        150 kg
Machine Size：                                          670*700*1650(LxWxHmm)

Features :
1,Automated CNC Processor and provide customers the high quality products
2,Using the German FESTO and Japan SMC pneumatic  parts
3,First printing machine with color match lights over the world, which can confirm the color according to the samples
4,Precise CNC fine adjustment of the pad; solving the problems of pad deformation
